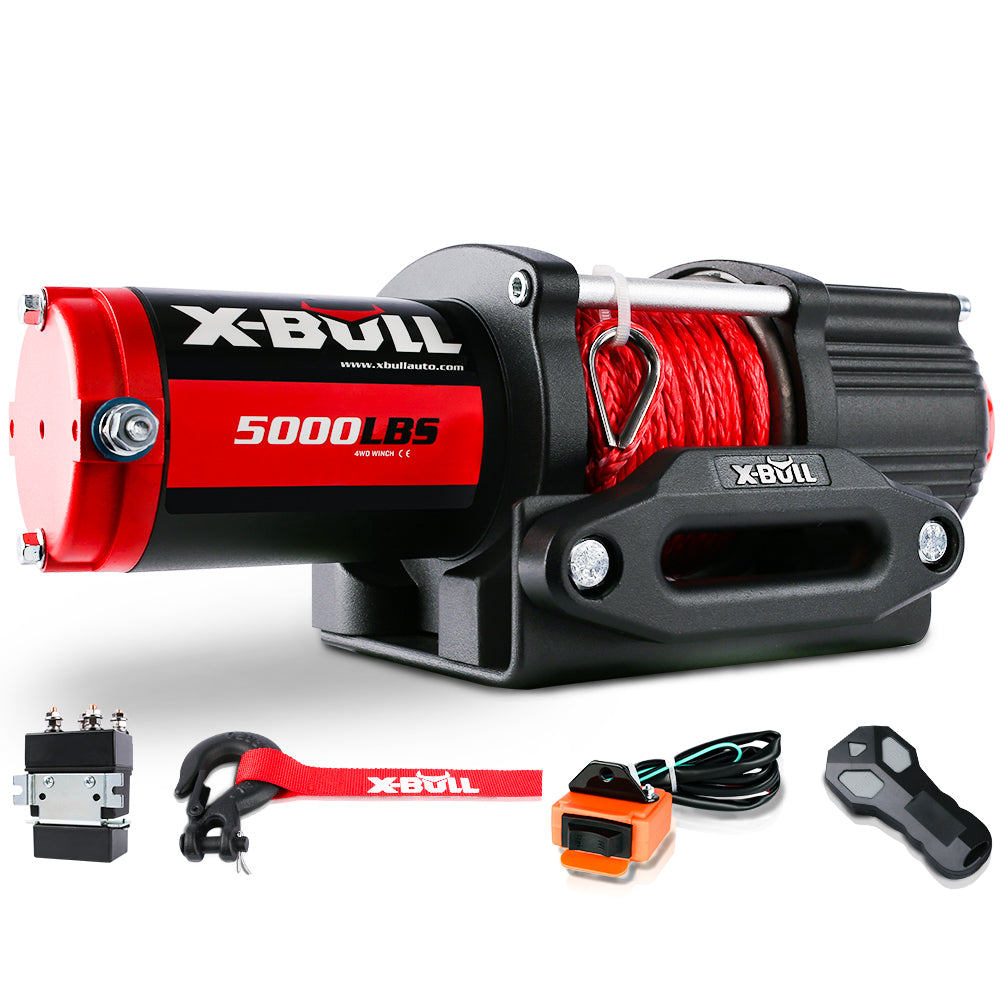

X-BULL 5000LBS Electric Winch with Synthetic Rope and Wireless remote to suit ATV UTV

The X-BULL 5000lbs is one of our new X-BULL high-efficiency winches for all offroad and life-loving customers. Over the past few years, we've documented the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 5000lbs uses the stronger 500A relays on the market. We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use.

What do you need to focus on most?

Motor

Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

Winch Solenoid Relay

Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches, not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insoluble, durable and stable, avoiding winch damage due to insufficient relay power.

3-Stage Planetary

The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).

PLEASE NOTE THIS APPLICATION IS SUITED ONLY FOR ATV/UTV VEHICLES AND IS NOT RECOMMENDED FOR LARGE VEHICLES

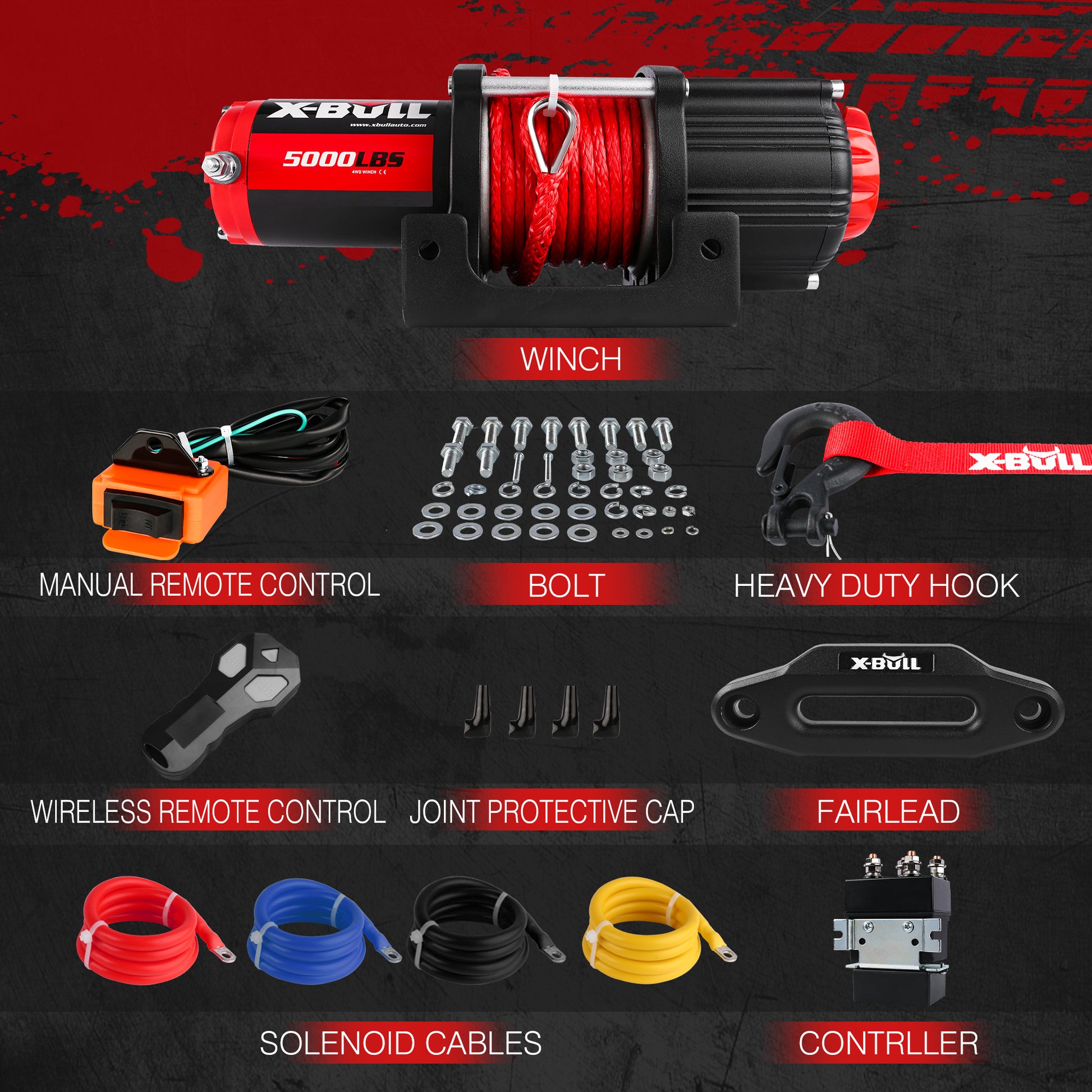

In The Box

1 x 5000LBS Winch
1 x Wireless Remote Control
1 x Aluminium Hawse Fairlead
4 x Joint Protective cap
1 x Controller(solenoid+receiver)
1 x Winch Mounting Plate
4 x Solenoid Cables
1 x Set of Bolts
1 x Clevis Hook
1 x Hand Remote Control

Specifications
Rated Single Line Pull: 5000lb.(2268kg)
Steel Cable: 1/4'' x 50' (6.3mm x 15.2m)
Winch Certification: CE
Battery: 12VDC, Minimum 12Ah
Duty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest)
Overall Dimensions(L X D X H): 15.8'' X 4.6'' X 4.7'' (400 X 116 X 119mm)
Solenoid: 6 gauge, 3'(0.92m) long

Application:ATV/UTV/BOAT
Mounting Pattern: 3'' x 6.6'' (76.2mm x 167.6mm)
Gear train: 3-Stage Planetary
Adaptor Plate: 2x G8, M8-1.25 X 25mm
Freespool: Cam Activated
Fairlead: 2x G8, M8-1.25 X 20mm
Hook:1/4" Clevis, with Spring-loaded Safety Latch
Sound Rating: 85 dB
Weight: 26.45lb. (12kg.)
